• Model NO.：FT8 with games
• Max Active Size：120inch( No Sunshine Room);100inch( Sunshine Room)
• Technology：Laser Image Calibration Technology
• Transport Package：Box
• Specification：1kg
• Trademark：Oway
• Origin：China
• HS Code：84716090
• Production Capacity：50000 Pieces,Month

FT8 Finger Touch Interactive Whiteboard SpecificationsCalibration Automatic(5 seconds) / Manual (4/15 points)Multi-touch100 points touch,Writing and erasing can be performed simultaneouslyLatency<30msFilterSoftware auto-control, enhance stability.Minimum Active Size40 inchMax Active Size150inch-200inch( no sunshine room);TechnologyLaser Image Calibration TechnologyPositional Accuracy±1 Pixel (Resolution: 4096*4096)Aspect Ratio4:3;16:9;16:10Projector ratio

Ultra short throw: 0.31	installation distance:0.45m
Short throw:1.03	installation distance:0.84m
Long throw:1.6	installation distance:2.2m.

Number of lasersunit *3Power5wPower of Laser Beam280mw*2Power requirements3.3V/2ASignal refresh rate120fpsConnectThe sensor and computer are connected by USB Cable; Emitter and
Sensor are wireless; Emitter just need power.Weight0.5kgOS RequirementWindows 2000/XP/Vista/7,8, 10SoftwareOwaySIWB; multi-boardCertificationCE, FCCWarranty2-yearPackage1. Sensor 2.Emitter 3. IR pen 4.USB cable (10m) 5. Remote      6.Power Adaptor 7. CD with software

Installation:

FT8 is small and easy to install. It doesn't require professional technology to install.
Just install the laser emitter in the middle area above the whiteboard (or flat surface) and put the signal receiver on the projector.


                                   FT8 installation diagram

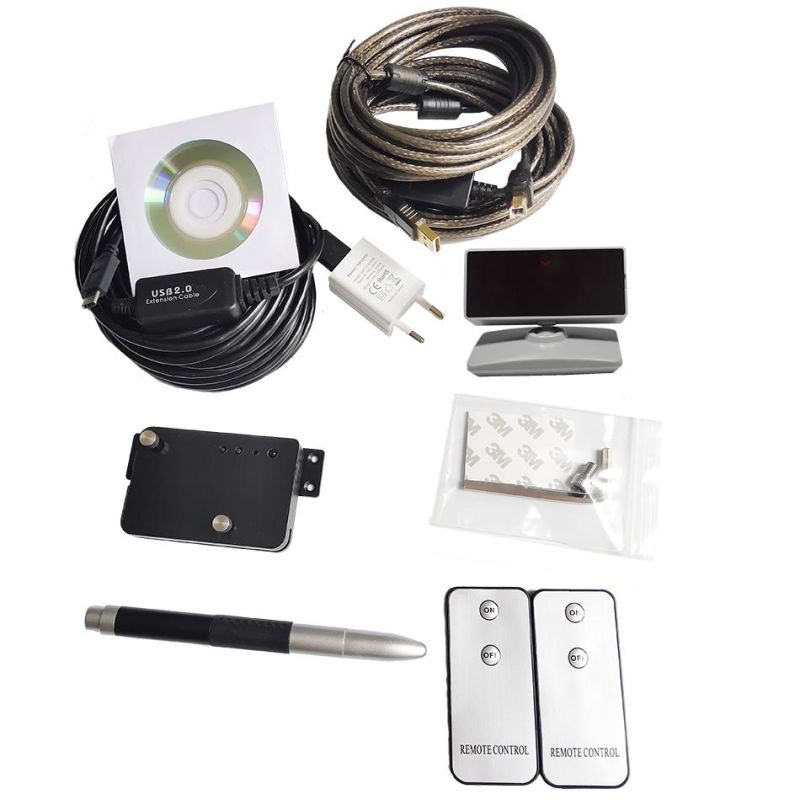

Full package:

1* Receiver
1* Emitter
1*10 meter USB cable
1* IR pen
1* Power adaptor
1* Remote control
1* Small spanner
1* CD
