• Model NO.：ninja
• Main Tube：50*3mm
• Braces：20*2mm
• Dimension(L*W*H)：All Size Can Be Customized
• Color：Aluminum Silver
• Usage：Event,Wedding Advertising Exhibition
• Connection：Spigot
• Quality：Excellent
• Keyword：H Truss
• Transport Package：Pack in Air Bubble Film or as Your Request
• Specification：TUV
• Trademark：DRAGON TRUSS
• Origin：Guangdong Guangzhou, China(Mainland)
• HS Code：7610900000
• Production Capacity：3000m, Month

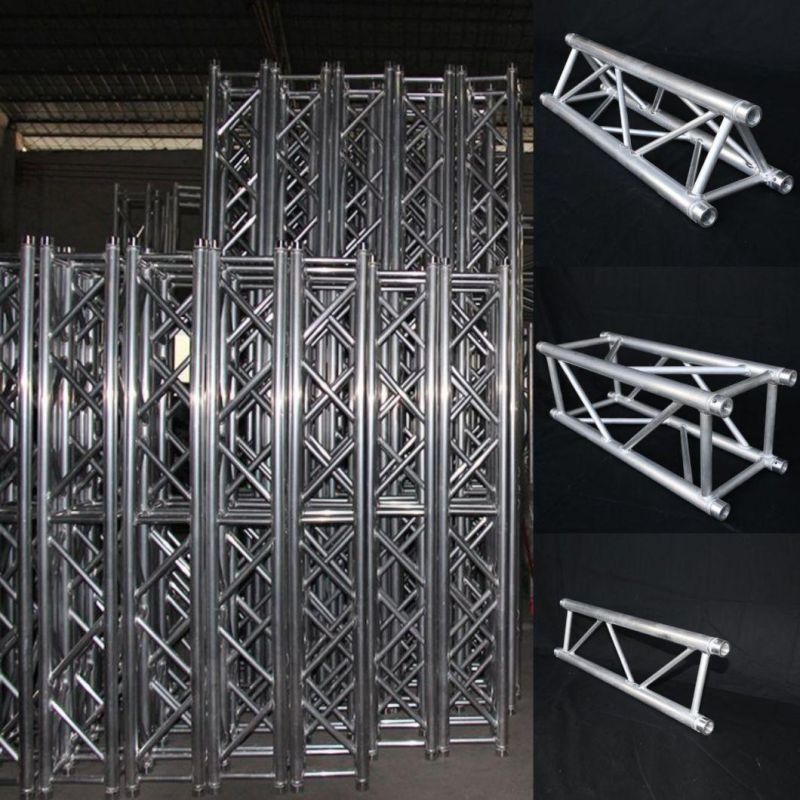

Material: Aluminum Alloy6082-T6Main tube50x3mm
 Brace tube30x2mmConnectionSpigot, also provide screw and bolt types for your choice.Canopy:PUV material CertificationTUV certificateLength0.5m,1m,2m,3m,4m(also design based on your request)ShapeLadder, Triangle, Square, Curve, CircleSize 300x300mm, 350x350mm, 400x400mm, 520x520mm, 500x600mm, 520x760mm,  600x760mm etc



More info of our truss

(1) CS30: 289mm*289mm; CS35: 350mm*350mm
Main tube: (diameter*thickness): 50mm*3mm OR 50mm*2mm
Beam tube: (diameter*thickness): 25mm*2mm
Oblique tube: (diameter*thickness): 20mm*2mm

(2) 389mm*389mm, 450mm*450mm, 520mm*520mm
Main tube: (diameter*thickness): 50mm*3mm
Beam tube(diameter*thickness): 30mm*2mm
Oblique tube(diameter*thickness): 25mm*2mm

(3)400*600mm, 500*600mm, 520*760mm, 600*760mm
Main tube: (diameter*thickness): 50mm*3mm, 50*4mm, 50*5mm
Beam tube(diameter*thickness): 50mm*2mm
Oblique tube(diameter*thickness): 25mm*2mm

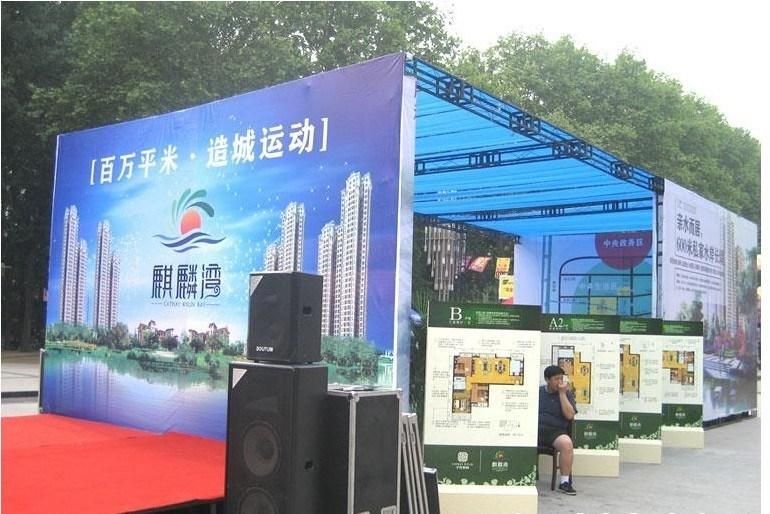

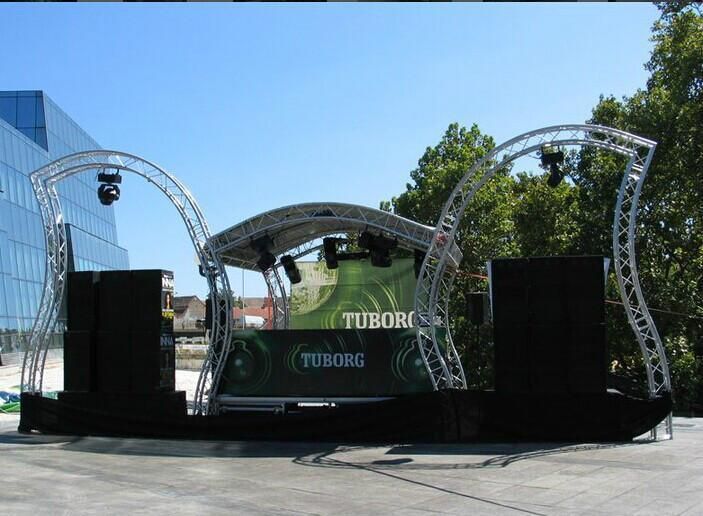

Application: We can design diverse shapes to hang acoustics, loud speaker, video, lighting, etc. Widely used for wedding, exhibition, show, concert, celebrations, ceremony, conference, performance, meeting, party, activities and so on.
